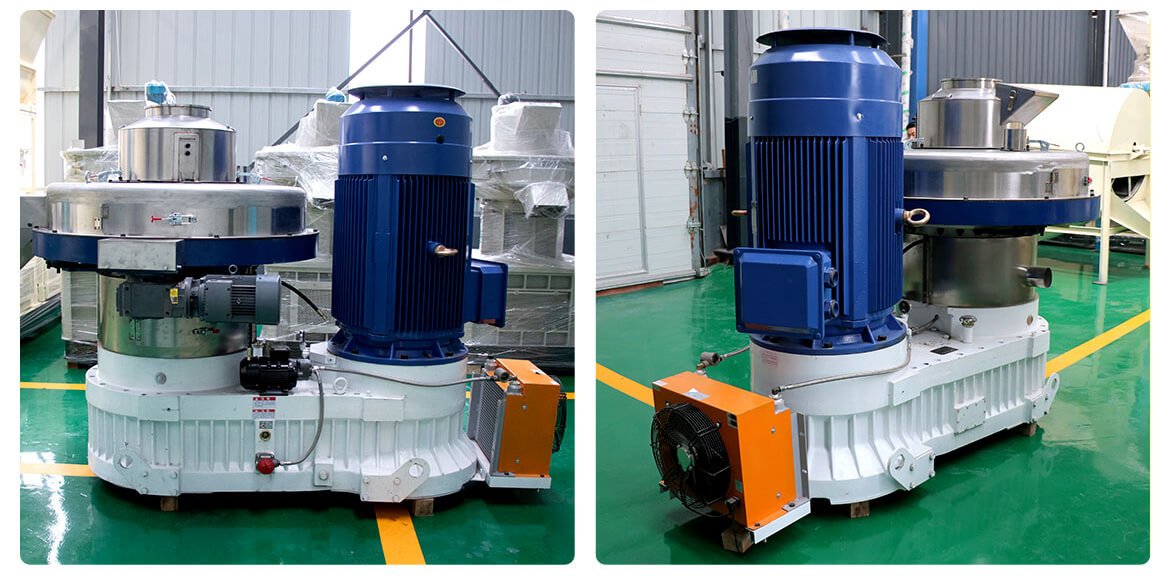

What Is a Wood Pellet Machine?
A wood pellet machine, also known as a biomass pellet mill, is used to compress loose biomass materials into dense cylindrical pellets. During pelletizing, the raw material is pressed through a ring die under high pressure, creating uniform fuel pellets with higher bulk density and easier storage and transportation.
The machine is widely used for processing sawdust, wood chips, agricultural residues and other biomass into renewable solid fuel for boilers, heating systems, power plants and industrial energy applications.
How Does a Biomass Wood Pellet Machine Work?
The biomass wood pellet machine compresses prepared biomass through a ring die and press rollers. The motor drives the pelletizing system, while the rollers continuously press the raw material through the die holes.
During compression, friction and pressure increase the material temperature and soften the natural lignin contained in biomass. The lignin acts as a natural binder, helping the material form dense and durable pellets without requiring large amounts of additional adhesive.
After extrusion, the pellets are cut to the required length and then transferred to a cooling system before screening and packing

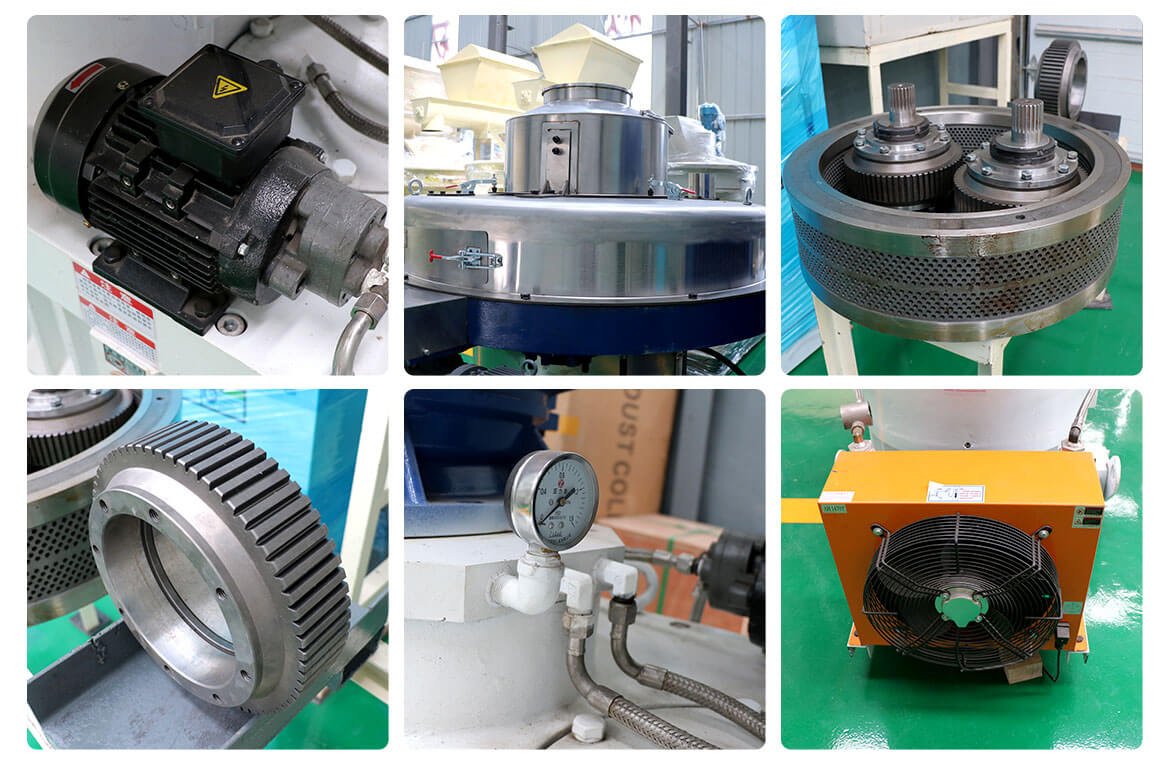

Key Components of the Wood Pellet Machine
High-Strength Ring Die：The ring die is manufactured from wear-resistant material and treated for improved hardness and service life. Its optimized die-hole arrangement increases the effective pelletizing area and helps improve output The reversible die design allows both sides to be used, helping reduce replacement costs.
Wear-Resistant Press Rollers：The press rollers use wear-resistant alloy materials and are designed for stable compression under continuous operation. Optimized bearing and lubrication structures help extend service life and reduce maintenance requirements.
Reliable Drive Motor：The machine can be equipped with a high-quality industrial motor to provide stable power for continuous pellet production. Motor specifications can be matched according to machine capacity and local voltage requirements.
Multiple Industries of Biomass Pellet Machine
What kind of raw material can be used to press pellets?
Our biomass pellet machine can process a wide range of forestry and agricultural residues. The raw material should have suitable particle size and moisture content before pelletizing. If the material is too large or too wet, crushing and drying equipment can be added before the pellet machine.
Wood and Forestry Materials：Sawdust, wood chips, wood shavings, pine, bamboo, branches and other forestry residues.
Agricultural Biomass：Rice husks, straw, corn stalks, peanut shells, cotton stalks, bagasse, palm fiber and other crop residues.
Other Biomass Materials：EFB fiber, grass and selected fibrous biomass materials suitable for pellet fuel production.
How to press wood pellets?

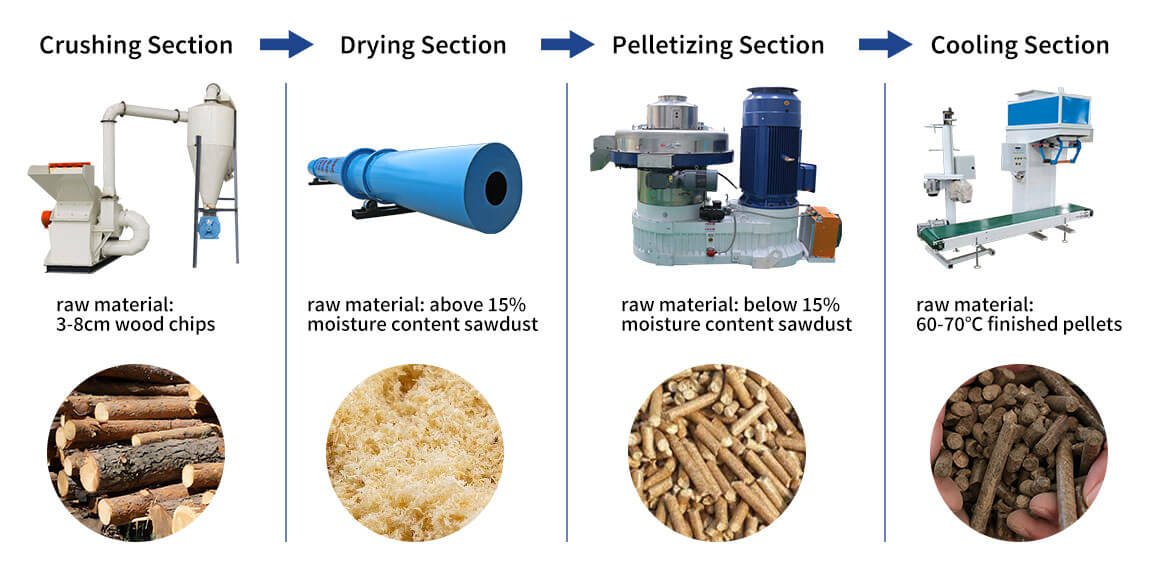

A complete wood pellet production line converts raw wood or biomass waste into finished fuel pellets through several processing stages. The exact configuration depends on the initial size and moisture content of the raw material.

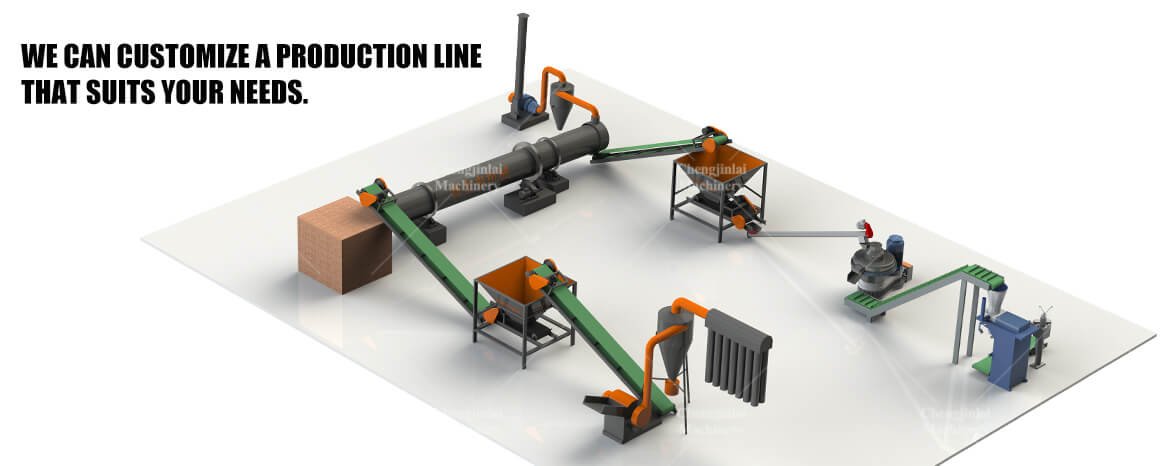

Complete Wood Pellet Production Line
If the raw material is already fine sawdust with suitable moisture content, the crushing and drying stages may not be required.
For wood logs and large branches, a wood chipper and hammer mill are normally used before drying and pelletizing.
The production line can be customized according to raw material conditions and required capacity.
How to Choose the Right Wood Pellet Machine Capacity?
The suitable machine capacity depends on your raw material, operating hours and target pellet output. Before selecting a model, it is important to confirm the available raw material quantity and required daily or hourly production.
For example, a small pellet workshop may require a lower-capacity pellet mill, while a commercial biomass fuel plant usually needs multiple pellet machines or a complete automated production line.
When requesting a solution, please provide:
- Raw material type
- Raw material moisture
- Raw material size
- Required capacity per hour
- Desired pellet diameter
- Local voltage
Based on this information, we can recommend a suitable machine and production line configuration.
Wood Pellet Machine Manufacturer
Chengjinlai provides biomass processing equipment and complete production line solutions for customers in different markets. Our services cover equipment selection, production line design, machine manufacturing, factory testing, shipping guidance and technical support.
Wood pellet machines can be customized according to production capacity, raw material characteristics and local power requirements. Before delivery, equipment can be tested to confirm stable operation.
