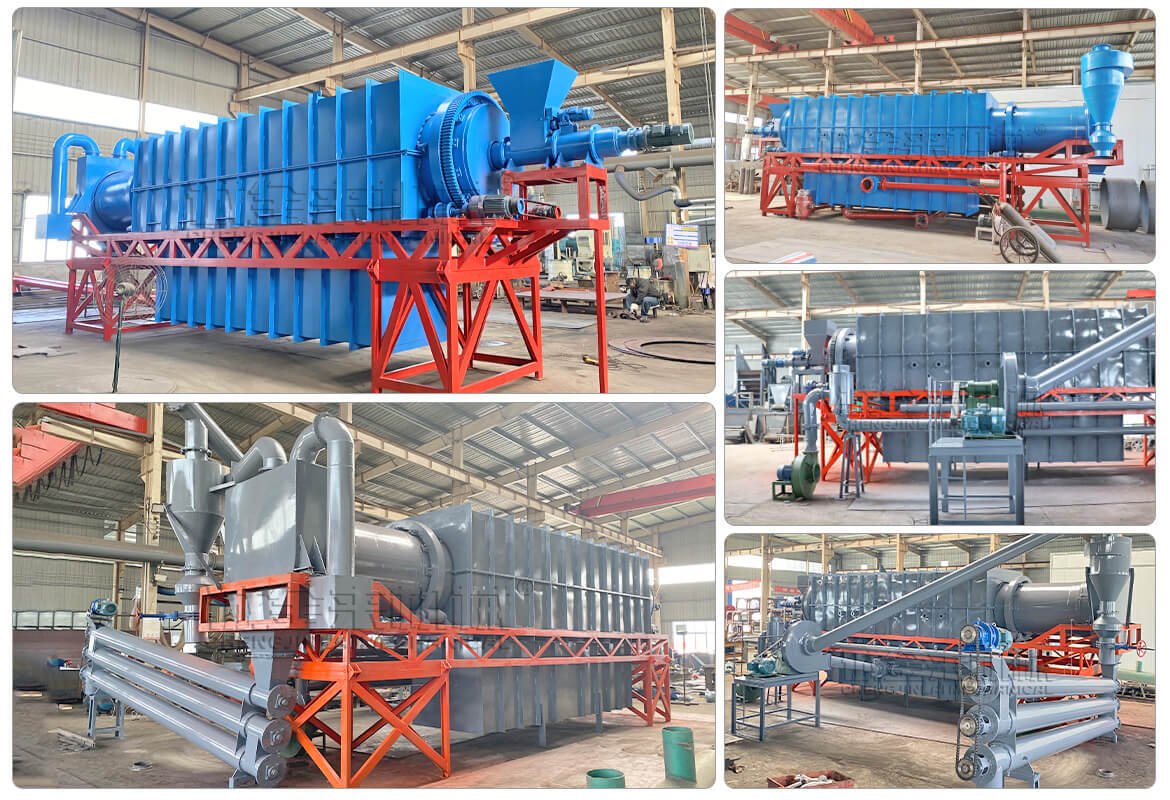

Continuous carbonization furnace

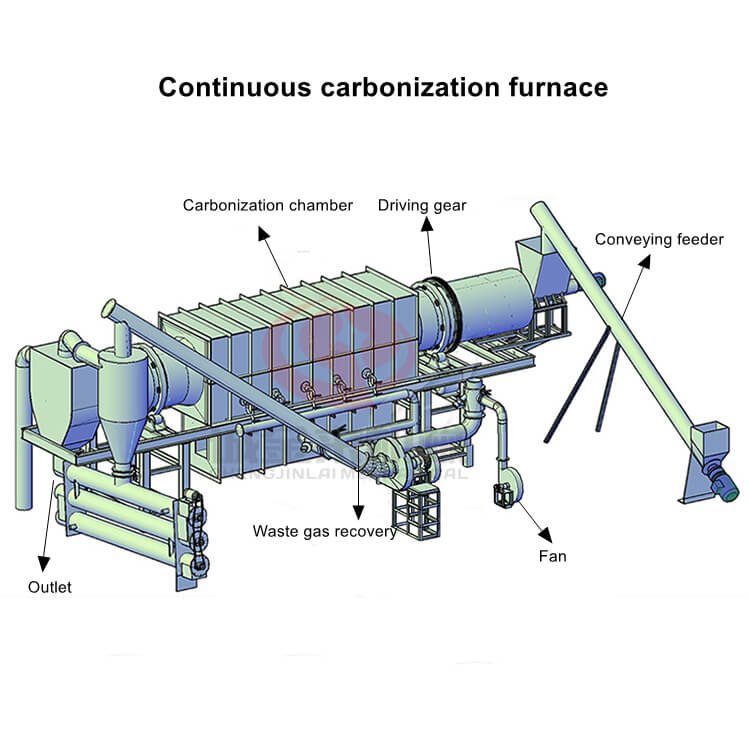

The continuous carbonization furnace is mainly used for the carbonization of biomass materials. The equipment is still using the principle of gasification carbonization and adopts advanced smoke-free environmental carbonization process:The whole set of equipment consists of gasification system (liquefied gas gasification machine), purification system (spray tower, cyclone dust removal, water cooling, oil water separator, fine filter) and control system (control cabinet). The whole carbonization process is automated production, automated operation.
Usage
Main Features of wood charcoal carbonization furnace
1. Gas preparation through the early stage of the new type of gasifier.
2. Matching a flue gas purification, heat exchange system, and cooling system. Making the heat steam into water. Flue gas can be converted combustible gas to combustion cycle.
3. Configuration a frequency conversion feeding machine, which is automatic feeding. The speed of feeding can be adjustable.
4. Matching a rotary drum carbonization host,in order to satisfy the production requirements.
5. Configuration a cooling discharging machine to cooling the final products and export final product.
6. Configuration a control cabinet.The temperature and speed can be easy to control. The continuous rotary drum carbonization equipment uses a PLC automatic control cabinet.
7. The equipment have a carbonized color display. The production status should be showing clear.
Raw Materials & Finished Products
All kinds of biomass material: Fruit Husk,Wood Scraps, Sugarcane Bagasse, and Crop Stalks,Biomass particles no more than 50mm and moisture content less than 20% can be directly carbonized into this carboning kiln.Raw materials with large size (above 50mm), such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk,need to be crushed firstly.If the moisture content is more than 20%, we need to choose a dryer to cooperate with the production process.
Machine Parameters
|
Type |
Motor (kw) | Capacity (kg/h) | Host Size(W*H*L) | Max temperature |
| CJL800 | 11 | 400-500 | 1000*1700*8000 mm |
900 degree
|
| CJL1000 | 12 |
600-800 |
1300*1900*8500 mm | |
| CJL1200 | 18.5 | 800-1000 | 1500*2000*8500 mm |

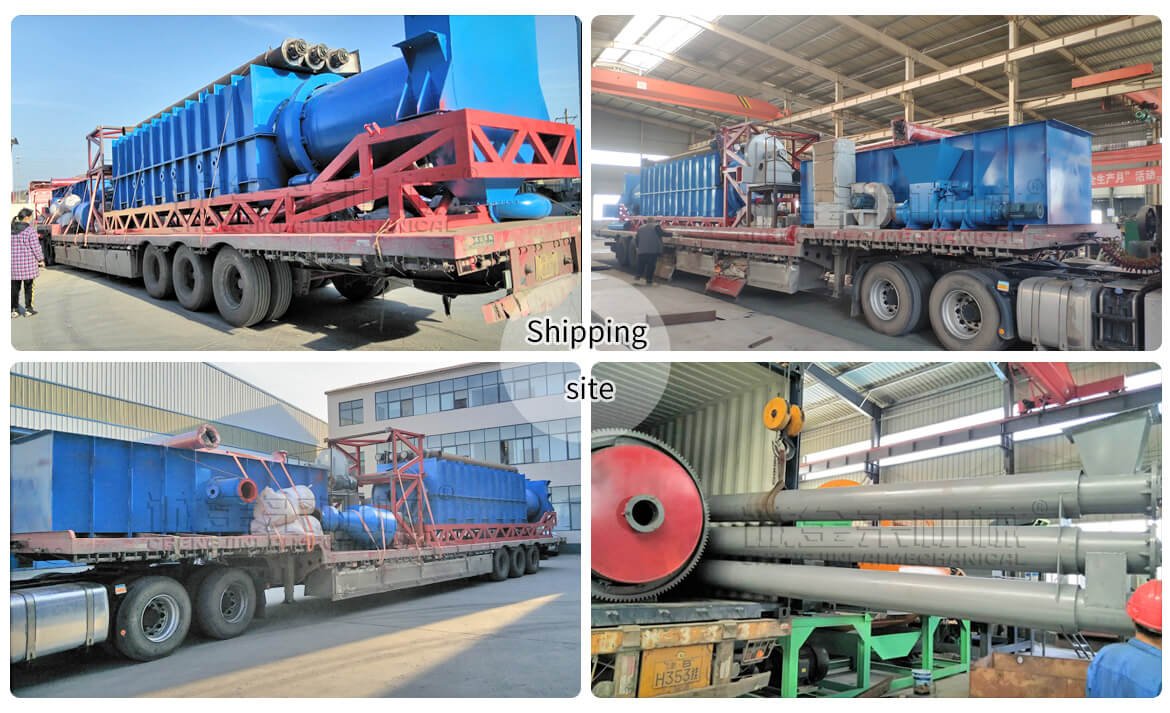

Factory delivery site
We are a professional manufacturer of charcoal machine equipment. We provide customers with production lines and various accessories. Such as trolley, induced draft fan, burner, high-voltage electrostatic system, etc. Therefore, we can customize different sizes of equipment.
If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.
