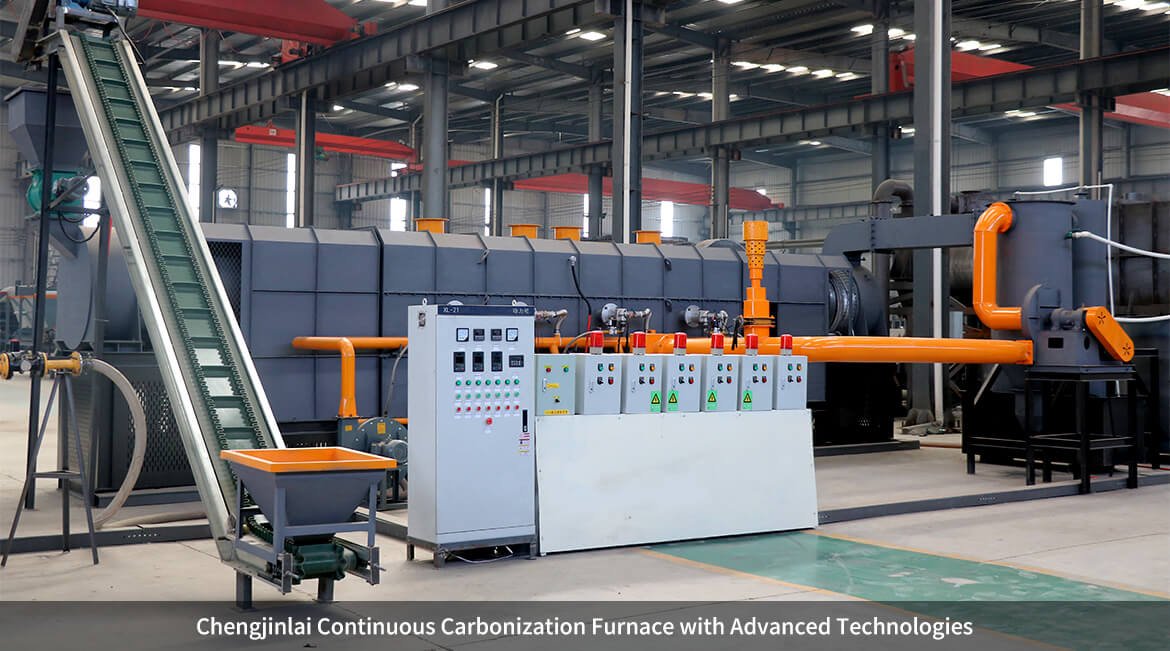

What is Charcoal Making Machine ?
Charcoal making machine utilizes biomass pyrolysis technology to convert organic materials such as wood, coconut shells, and agricultural waste into charcoal. Through a high-temperature, low-oxygen process, biomass undergoes pyrolysis, where it decomposes without burning. This transformation breaks down the original composition of the biomass, such as lignin, cellulose.
Meanwhile, it release volatile compounds, leaving behind solid carbon-rich charcoal. Charcoal machine integrates feeding, reaction, discharge, and exhaust treatment systems into one production line. It truly achieves efficient and eco-friendly production.

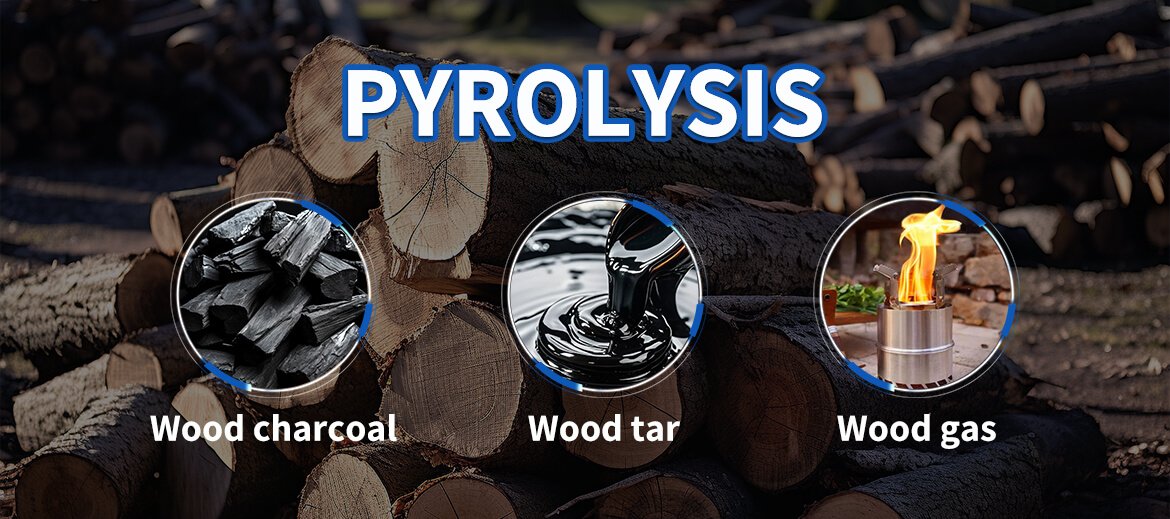

The Key to Charcoal Making Machine /Carbonization Furnace: Pyrolysis
The carbonization furnace converts biomass (wood/straw, etc.) into fixed carbon through anaerobic pyrolysis reaction, which is essentially a molecular restructuring process of organic matter. In a sealed environment isolated from oxygen, precise temperature control of 300-800 ℃ triggers the chemical bond breaking of lignocellulose, achieving controllable separation of solid gas liquid three-phase products.
WOOD CHARCOAL : Carbonization process of wood to form wood charcoal with stable structure.
WOOD GAS: Volatile organic substances generate combustible gas during dehydration and demethylation stages
WOOD TAR: The aromatic compounds in wood undergo dehydrogenation, condensation, hydrogenation and other processes to generate wood vinegar and wood tar.
Charcoal Making Machine Application industry

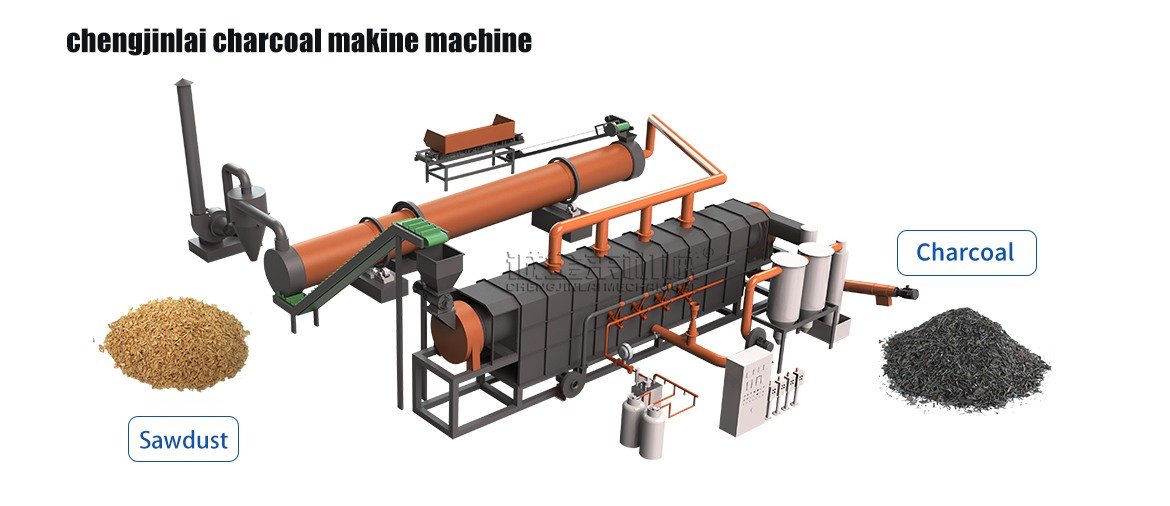

Working Process of Wood Charcoal Making Machine
1. Material Conveyance: Materials are typically fed into the continuous carbonizaion furnace in granular or block form. Raw material size need to less than 2cm.
2. Preheating and Drying(Alternation): The preheating temperature is usually about 150 ° C, and the moisture is controlled below 15%.
3. High-Temperature Carbonization: After entering the carbonization furnace, the materials pass through a series of heat treatment zones
4.Collection of Carbonized Products: These products typically include charcoal and some residual ash
5.Molding (optional according to the use of toner finished products) : According to diferent uses of toner can be made intocorresponding rod, ball finished products. Such as barbecue carbon, Hookah carbon, etc.
6.Waste Gas Treatment: Common waste gas treatment methods include spray towers, waste gas incineration, or other gastreatment systems.

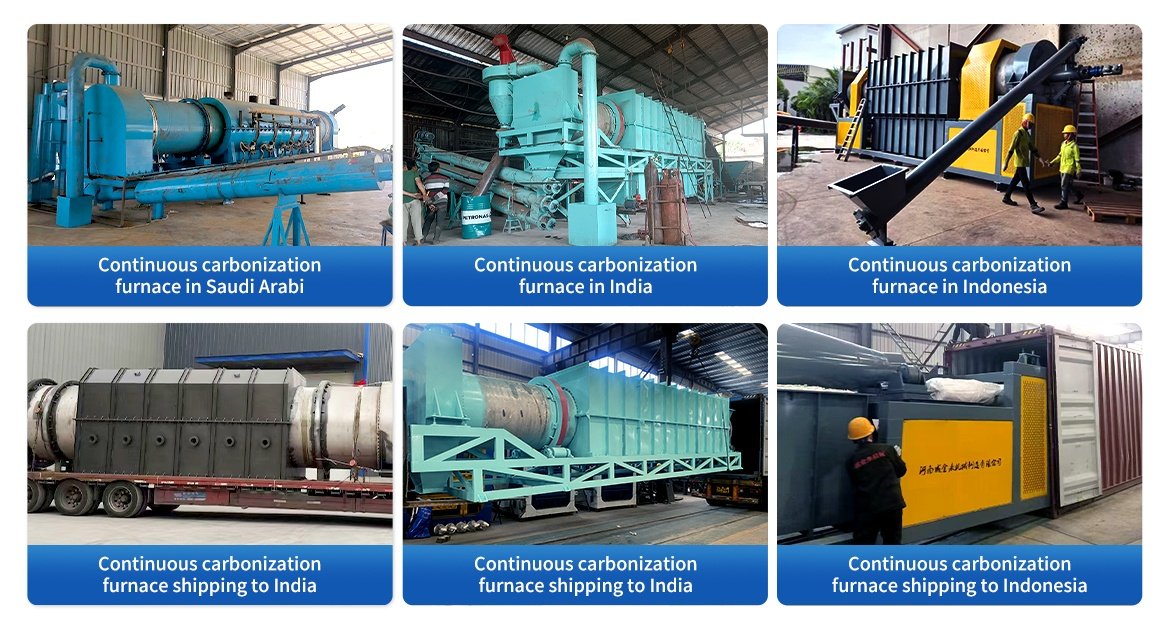

Global Cases of Wood Charcoal Making Machine
