HEAT PUMP DRYER
The heat pump dryer uses the air around the environment to transfer heat to the surface of the material to wet the surface. With the latest cold, warm air drying system, drying temperature of heat pump dryer ranges from 10℃ to 85 ℃. It is more more effectively than any traditional drying equipment in protecting the drying material color, smell, taste, individual form and nutrition.
The air energy dryer integrates all components through an integrated design. The actual installation is very simple. You only need to connect the vent pipe, and the stable heat pump can work all day. The use of household 220-230V voltage does not require commercial 380V power consumption. The equipment is not subject to weather and site restrictions, which expands the scope of application and improves drying efficiency.
Usage

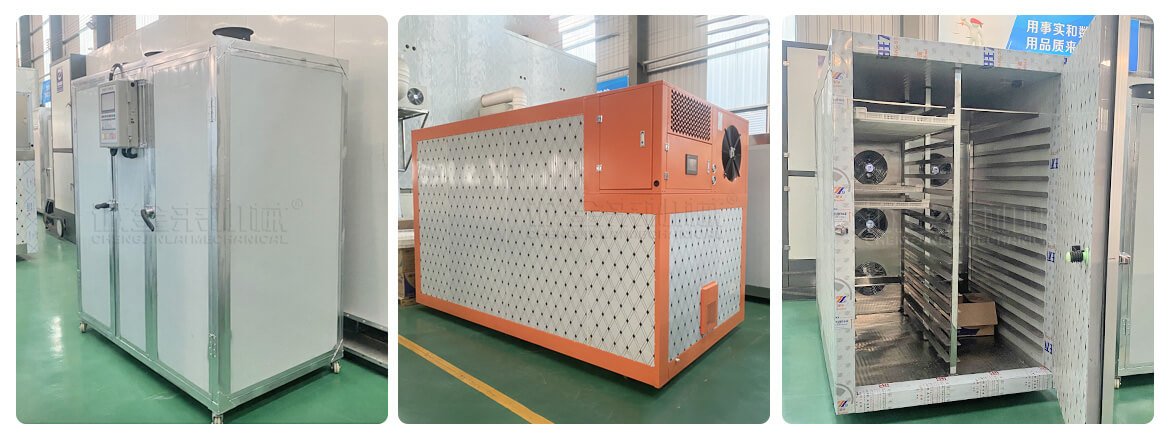

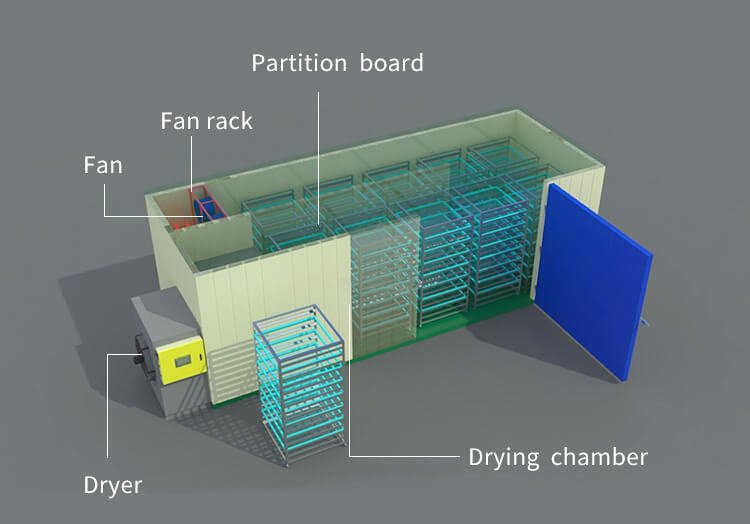

Heat Pump dryer is consists of the drying box, Feeding and discharging device, heat resource,electric control cabinet,draft fan and other devices.The trolley adopt galvanized square material or stainless steel material, high temperature resistant, corrosion resistance and convenient to use.
1)Pieces for dryer
Dryer box will separate different pieces, its easy loading in the container, save space and shipping cost.its very easy installation by screw.
2)Trolley and trays
Put shisha or bbq in the trays,then put trays in the trolley, and push trolley inside dryer room to drying

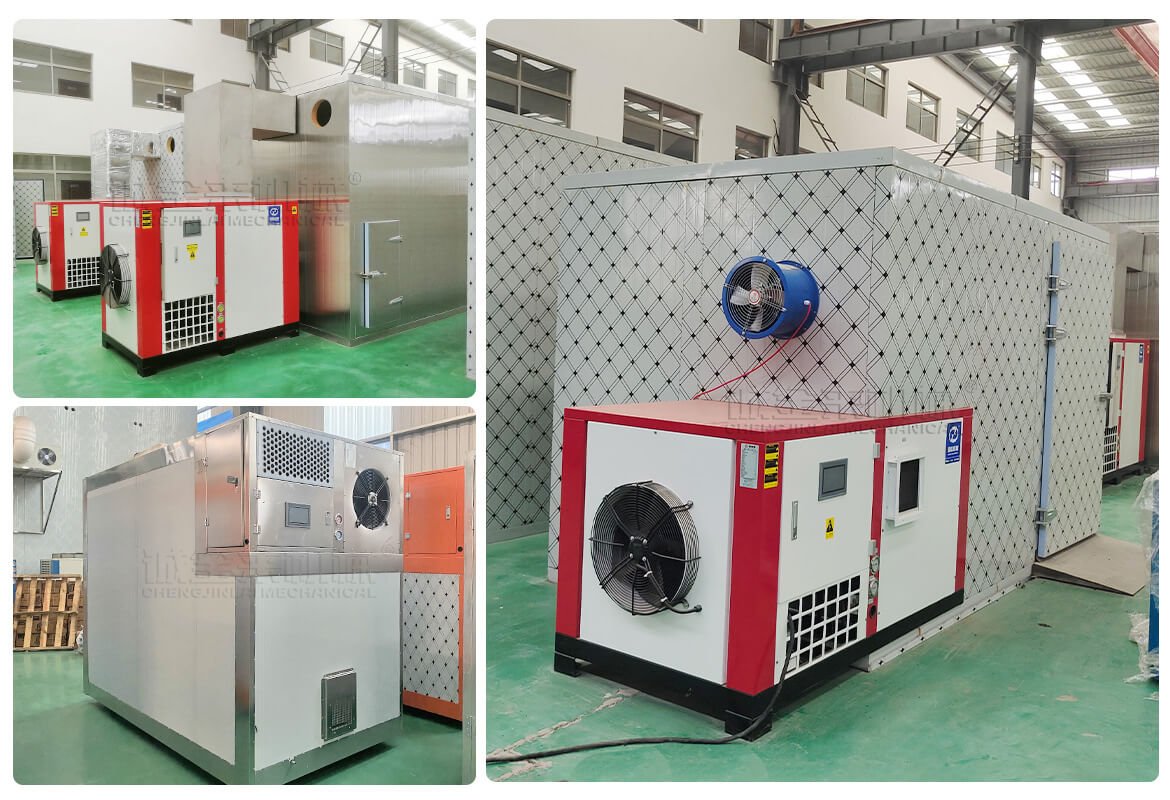

3)Heat pump for the dryer
Heat pump working like air conditioner,save energy, The working principle is: the refrigerant is compressed by the compressor to become high-temperature and high-pressure gas, enters the condenser, and condenses liquefied heat, which is used to heat the drying room to provide the temperature of the drying room. The moisture in the material is vaporized and evaporated by hot air.The evaporated water vapor is patted away by the dehumidification system to achieve the purpose of dehumidifying the dried materials. The dehumidification system uses a heat recovery device. The recovered heat is used to heat the fresh air, which can save 60% -70% of the fresh air preheats energy consumption to achieve further energy savings.
The application of heat pump drying machine
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava,etc
Dry fruits like Apple, lemon, mango slices, dried longan, dried longan,etc
Dry meat: Sausage, beef, duck, ham,etc
Others it can dry noodle/ wooden /stick incense/herbs /floers ect.
Machine Parameters
|
Model
|
3P |
|
Heat Pump Size(L*W*H)mm
|
1800*1000*1070
|
|
Drying Room Size(L*W*H)mm
|
3300*2000*2200
|
|
Rated Heating Capacity (kw)
|
12.25
|
|
Host Power(kw)
|
4
|
|
Electric heating power(kw)
|
6
|
|
Circulating fan power(kw)
|
8 x 0.25
|
|
Returning Fan power(kw)
|
/
|
|
Humidity exhausting fan(kw)
|
1 x 0.25
|
|
Trolley Qty
|
4
|
|
Trolley size(mm)
|
810*860*1750
|
|
Tray Qty
|
96
|
|
Tray Size(mm)
|
430*730
|
|
Tray Material
|
PP Polypropylene/Stainless Steel
|

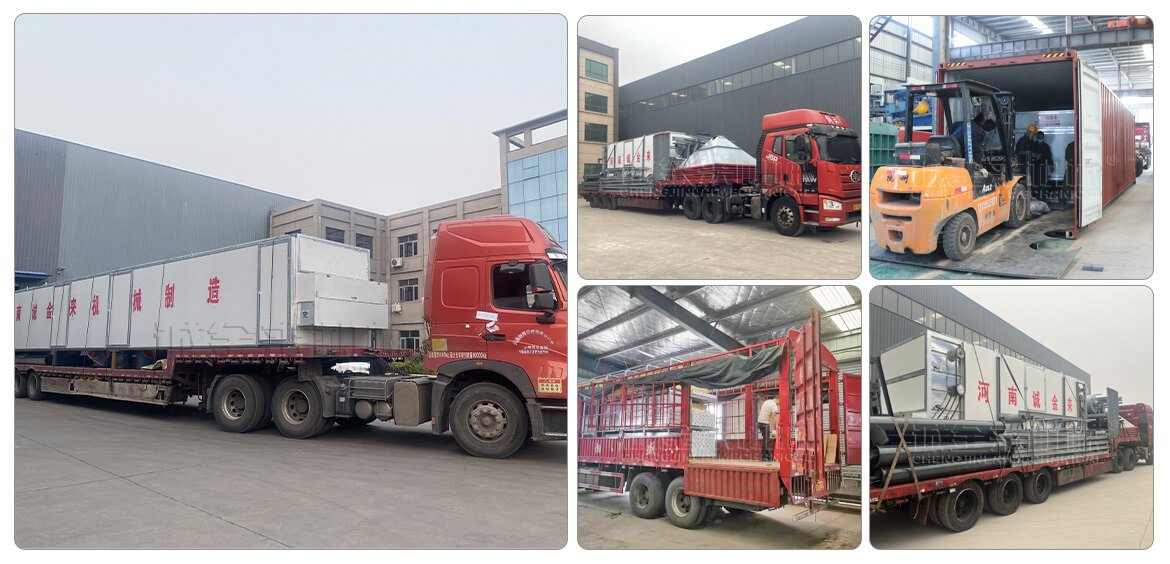

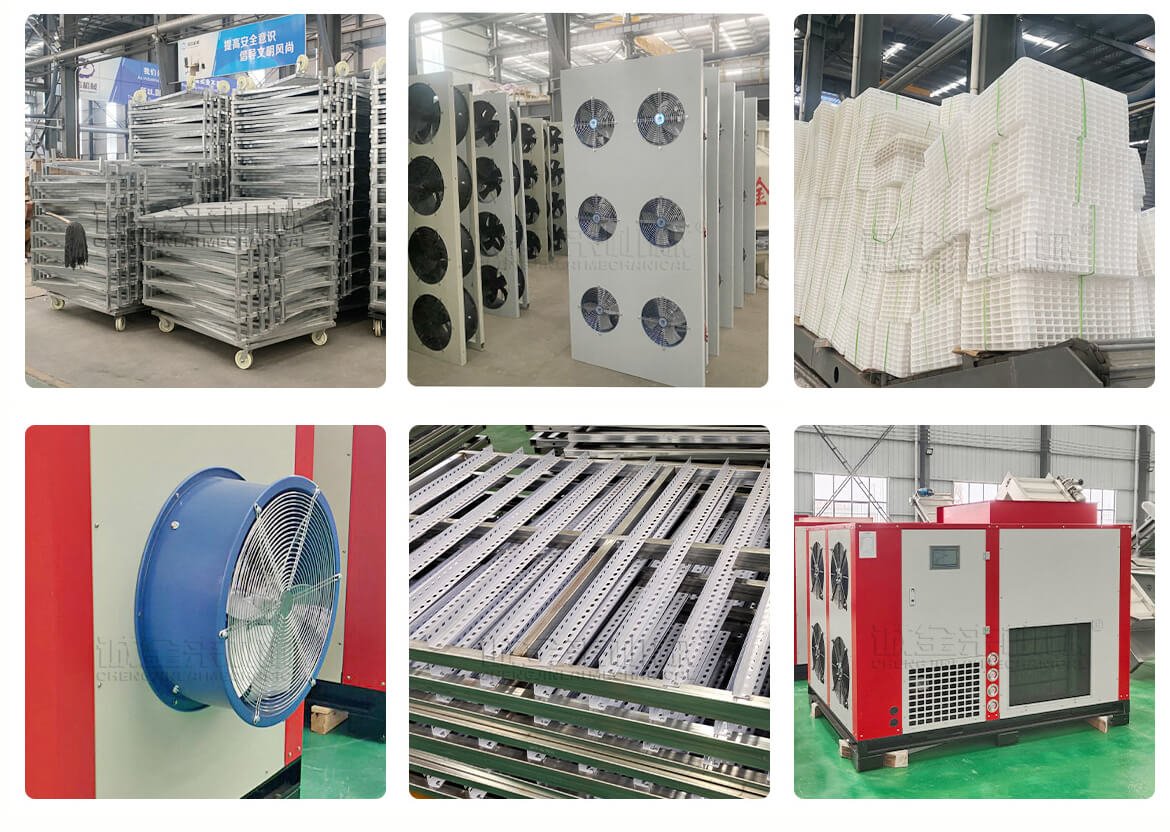

Factory delivery site
If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.
